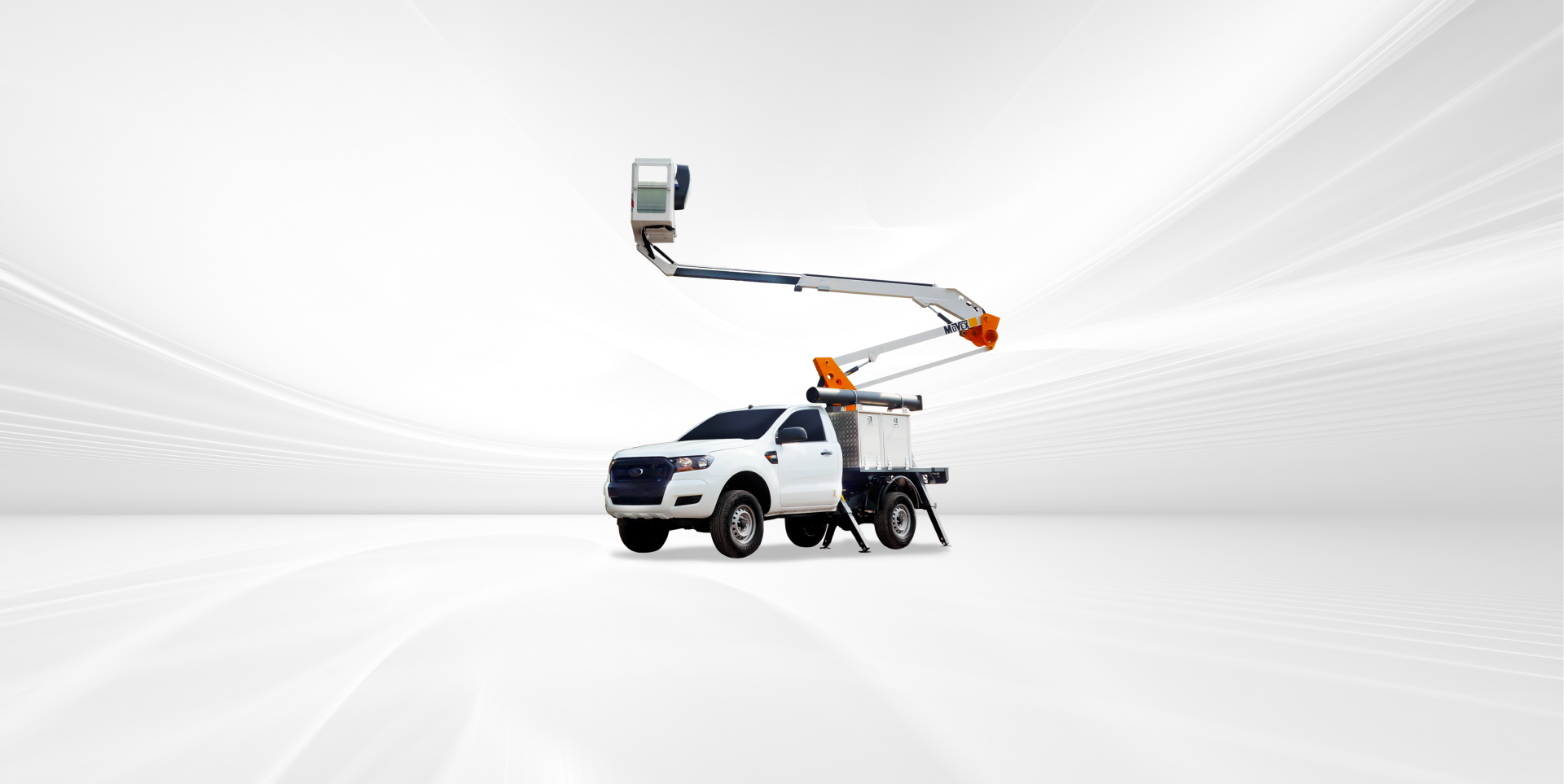

Our productsATL 15 Pick Up Ford Ranger 4×4

Tree trimmers

Mounting on 4X4 pick-up truck
Chassis cab
Produced in Spain

- High manoeuvrability
- Cross-country capabilities
- Compass/telescope architecture

Technical specifications

  • Working height: 15.10 m
  • Floor height: 13.10 m
  • Maximum outreach with outriggers: 8.00 m
  • Basket load: 225 kg / 2 persons
  • Turret rotation: 420
  • Cutaway body
  • Maximal usage slope: 3 %
  • Maximal usage tilt: 10 %
  • 1000 V insulated full opening fiber basket
  • Basket dimensions: 1263 x 774 x 1130 mm
  • Minimum GVWR: 3500 Kg
  • Cable chain holder inside the telescope
  • Electro-hydraulic and sequential commands
  • Priority electro-hydraulic back-up console
  • Hour counter
  • Emergency hand pump
  • Electric operation on battery pack
